Capacity: 3,000 lbs (1360 kilos) of flake ice in 24 hours. *
Refrigeration: 404-A
Unit Sizes
Single Deck

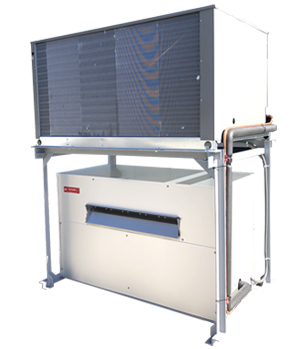

Double Deck
Remote - Evaporator
Remote - Condenser
DIMENSIONS:
96”x 42”x 42”H
44”x 50”x 75”H
36”x 24”x 30”H
49”x 38-5/16”x 36-3/8”H
WEIGHT:
1350 lbs
1300 lbs
500 lbs
710 lbs
*Ice production based on 60 degree (F) water and 70 degree (F) ambient temperature.
Electrical Specifications
Model
Compr. HP
Volts
Phase
Cycles
Total Unit Amps
Minimum Circuit
Ampacity
DER26F-1.5T:
3 HP low temp
208/230V
3
60
21.0
30.0
A-1 Refrigeration Co. employs highly trained and talented engineers that create premium ice machines. Additionally, A-1 only uses parts from top-of-the-line stainless steel distributors. Each machine boasts superior welding, construction, and is thoroughly checked and inspected by an exclusive seven-day testing period that will ensure each machine achieves its full output potential.
All A-1 Flake Ice Machines have the following features:
USDA Approved
No Solid Ice Mass
Cools Faster than other non-A-1 Refrigeration Co. machines
Safety controls
Easy Maintenance
No defrost necessary
Stainless Steel Evaporator Drum
Stainless Steel Cutter
Stainless Steel Adjustable Ice Scraper Blades
Stainless Steel Chute
Stainless Steel Safety Plate
Machine frame welded and hot-dipped galvanized
Safety microswitch
Stainless Steel water tank
